Propelling agitator

2018/8/7

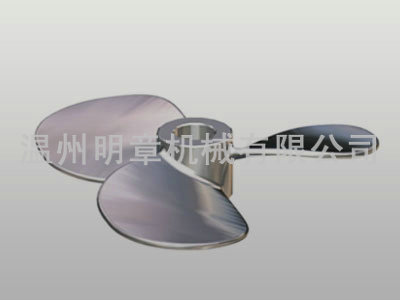

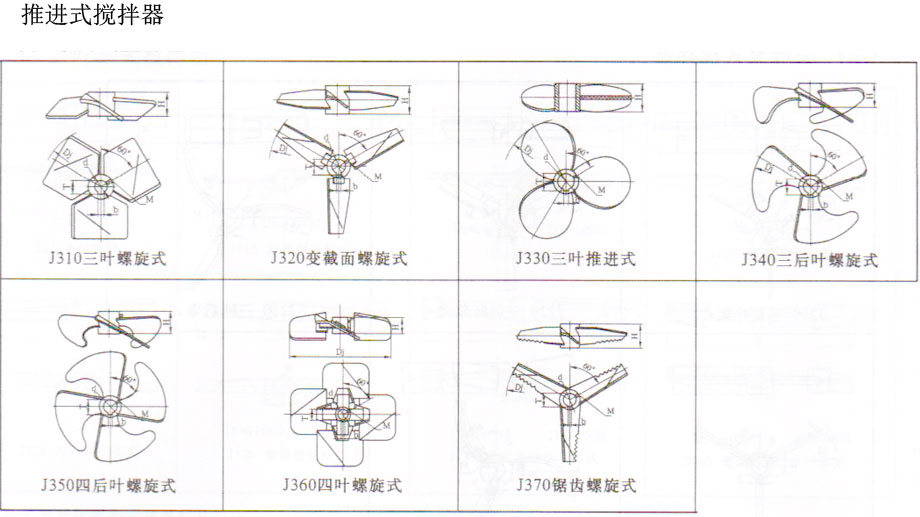

　　Propulsion type is the most typical axial flow agitator, high liquid discharge, low shear performance; the use of baffles or guide barrels is more axial circulation. The discharge performance is obviously improved because of its strong cycling ability and low power consumption. It is most suitable for homogeneous and mixing process in large capacity. It is widely used in heat transfer, reaction, suspension and dissolution of low viscosity liquid with small solid-liquid ratio. The adjustable propeller blade can rotate 65507 The detachable propeller hub is divided into three parts, which are convenient for assembly and used in occasions where small parts are needed to be disassembled. The structure with stable ring can play the role of radial centralization by the role of liquid damping in high-speed operation. In general, the critical speed can be increased by 10%-20%.
